- Cheaper solution without display
- Compact and separated version
- Wide range of process connections
- A lot of material choices of lining and electrodes
- IP68 protection in separate version with stainless steel sensor or housing
- Empty pipe detection
- Ethernet / MODBUS TCP com
- Power supply over ethernet
Applications
- Water treatment and water waste treatment
- Chemical industry
- Food industry
- Mechanical engineering
- Agriculture
- Power engineering
-

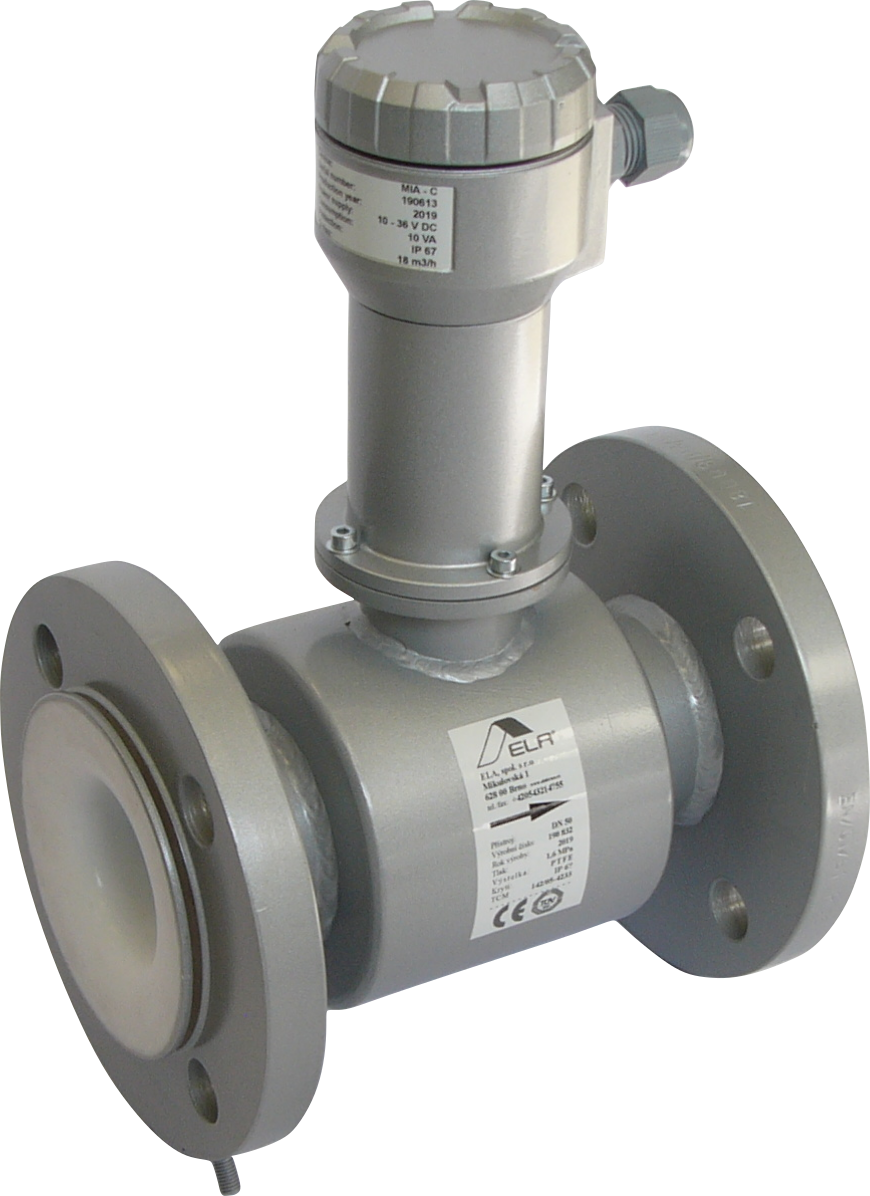

- MIE – C (compact version)
-

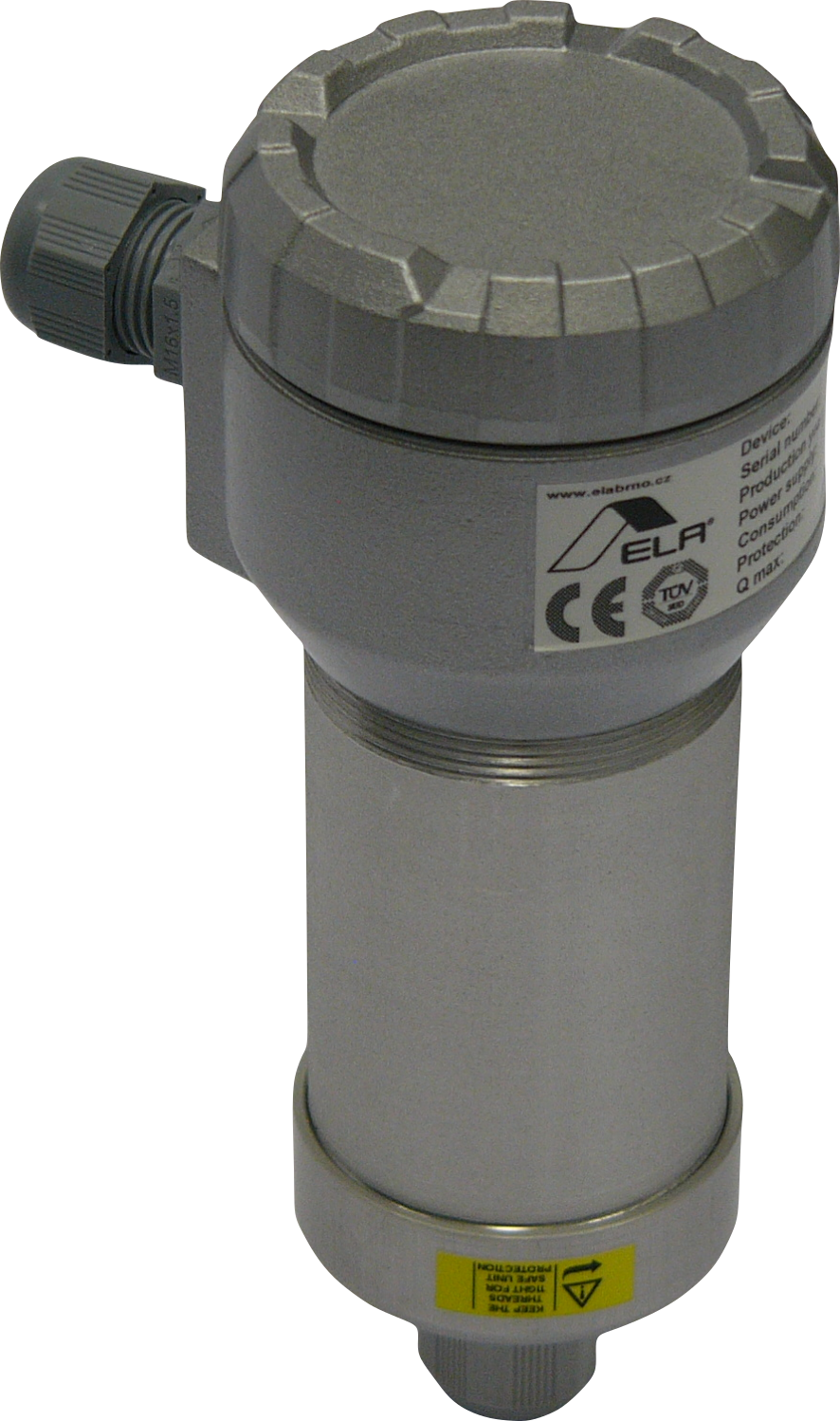

- MIE – S (separated version)
Specifications
| Option | compact version |
| separated version (sensor instalated under ground or under liquid level), | |
| fixed cable, cable length according to the order (max. 50 m) | |
| Nominal sizes | flange DN 10 ÷ 1000 mm, without flanges DN 10 ÷ 100 mm |
| Insulation class of exitation coils | class E |
| Connection | flanged DIN (ANSI, BS, JIS) / hygienic – food DIN 11 851 |
| Maximum pressure | standard 1,6 MPa (0,6 / 1,0 / 2,5 / 4,0 MPa) |
| Liner material | hard + soft rubber DN 10 ÷ DN 1000 / teflon PTFE DN 10 ÷ DN 500 |
| Electrodes | stainless steel 316Ti (Hastelloy / Tantal / Titan / Platinum) |
| Outer casing and flanges | carbon steel standard (stainless steel 304, 321) |
| Flow tube | stainless steel 321 |
| External coating | acrymetal multi component lacquer / polished stainless steel |
| Protection | IP67-NEMA5 (compact version) / IP68-NEMA6 (separated version) |
| Media temperature | compact version: 0 ÷ 90 °C |
| separated version: hard rubber (0 ÷ 90 °C), PTFE (-20 ÷ 130 °C) | |
| Accessories option | sensor grounding ring for plastic pipe for DN 10 ÷ DN 40 |
| sensor grounding electrode for DN 50 ÷ DN 1000 | |
| Special option | food industry stainless steel version – teflon lining, fitting DIN 11 851 |
| flange version with stainless steel cover – teflon / rubber lining | |
| flange all-stainless steel version – teflon / rubber lining | |
| without flange version – teflon / rubber lining | |
| Flow direction | both direction |
| Suppresion of small flows | yes |
| Empty pipe detection | yes |
| Electrical conductivity of medium | ≥5 µS/cm, for demineralized water ≥20 µS/cm |
| Accuracy of measurement | 0,5 % of measured value + 2 mm/s (reference conditions) |
| Communication port | ethernet, 10Base-T resp. 100Base-TX, protocol MODBUS TCP (instantneous reading, |
| parameters setting and calibration) | |
| Power supply | over ethernet, passive, 9 ÷ 36 V DC / 10 W |
| Main unit protection | IP67 – NEMA5 |
| Ambient temperature | -20 ÷ 60 °C |
Technical data of special sensors
| Special sensor variants | design 1 | design 2 | design 3 |
|---|---|---|---|
| Control principle | DC pulse | ||
| Connecting cable | standard 8 m, to order of 16, 24, 32, 40, 48 m, cable can not be extended without consultation with producer | ||
| Construction | completely welded carbon steel | ||
| Inner diameter | DN 10 ÷ 1000 | ||
| Mounting connection | to order special connection , without flange | ||
| Enclosure | IP 67 / NEMA 5 (IP 68 / NEMA 6) | ||
| Measuring tube material | stainless steel | ||
| Sensor cover material | carbon (stainless) steel | ||
| Flange material | to order | ||
| Ground rings | DN 10 ÷ DN 40 to order for installation in plastic pipe | ||
| Sensing electrode material | stainless steel (titanium, hastelloy, platinum) | ||
| Lining material | hard rubber | soft rubber | teflon PTFE |
| Maximum temperature of medium * | 90 °C | 90 °C | 130 °C |
| Standard pressure load Pressure range ** |
1,0 MPa 0,6 / 1,0 MPa |
1,0 MPa 0,6 / 1,0 / MPa |
1,0 MPa 0,6 / 1,0 MPa |
* Maximum temperature of measured medium consult with producer
** Construction of sensor and type of flange depends on the maximum desired pressure of medium
